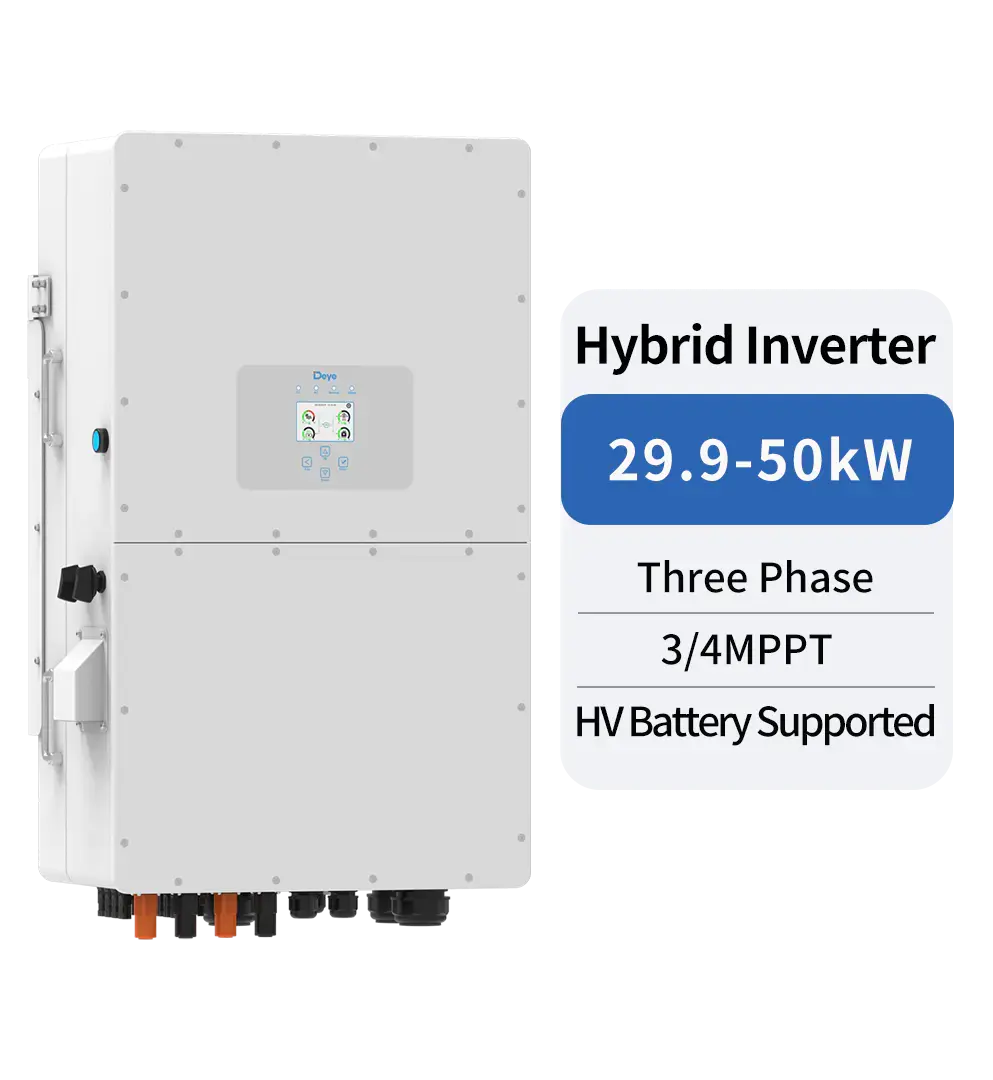

| Model | SUN-29.9K-SG01HP3-EU-BM3 | SUN-30K-SG01HP3
-EU-BM3 | SUN-35K-SG01HP3
-EU-BM3 | SUN-40K-SG01HP3
-EU-BM4 | SUN-50K-SG01HP3
-EU-BM4 |
| Battery Input Data | |
| Battery Type | Lithium-ion |
| Battery Voltage Range(V) | 160-800 |
| Max.Charging Current(A) | 50+50 |
| Max.Discharging Current(A) | 50+50 |
| Charging Strategy for Li-ion Battery | Self-adaption to BMS |
| Number of battery input | 2 |
| PV String Input Data | |
Max. PV Access Power (W) | 59800 | 60000 | 70000 | 80000 | 100000 |
| Max DC Input Power（W） | 47840 | 48000 | 56000 | 64000 | 80000 |
| Max DC Input Voltage（V） | 1000 |
| Start-up Voltage（V） | 180 |
| MPPT Voltage Range（V） | 150-850 |
| Rated DC Input Voltage(V) | 600 |
| Max Input Short-Circuit Current（A） | 55+55+55 | 55+55+55+55 |
| Max Operating PV Input Current（A） | 36+36+36 | 36+36+36+36 |
| No.of MPP Trackers/No.of String Per MPP Tracker | 3/2+2+2 | 4/2+2+2+2 |
| AC Input/Output Data | |
| Rated AC Input/Output Active Power（W） | 29900 | 30000 | 35000 | 40000 | 50000 |
| Max AC Input/Output Apparent Power （VA） | 29900 | 33000 | 38500 | 44000 | 55000 |
| Peak Power (off-grid)（W） | 1.5 times of rated power,10s |
| Rated AC Input/Output Current（A） | 45.4/43.4 | 45.5/43.5 | 53.1/50.8 | 60.7/58.0 | 75.8/72.5 |
| Max AC Input/Output Current（A） | 45.4/43.4 | 50/47.9 | 58.4/55.8 | 66.7/63.8 | 83.4/79.8 |
| Max Continuous AC Passthrough (grid to load)（A） | 200 |
| Rated Input/Output Voltage/Range(V) | 220/380V，230/400V 0.85Un-1.1Un |
| Grid Connection Form | 3L+N+PE |
| Rated Input/Output Grid Frequency/Range | 50/45-55, 60/55-65 |
| Power Factor Adjustment Range | 0.8 leading-0.8 lagging |
| Total Current Harmonic Distortion THDi | <3% (of nominal power) |
| DC Injection Current | <0.5%ln |
| Efficiency | |
| Max Efficiency | 97.60% |
| Euro Efficiency | 97.0% |
| MPPT Efficiency | ＞99% |
| Equipment Protection | |
Integrated | DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc Fault Circuit Interrupter (optional), Anti-islanding Protection, DC Switch, Insulation Impedance Detection, Residual Current Detection |
| Surge Protection Level | TYPE II(DC), TYPE II(AC) |
| Interface | |
| Communication Interface | RS485/RS232/CAN |
Monitor Mode | GPRS/WIFI/Bluetooth/4G/LAN(optional) |
| General Data | |
| Operating Temperature Range | -40℃+60℃,＞45℃ Derating |
| Permissible Ambient Humidity | 0-100% |
| Permissible Altitude | 2000m |
| Noise | ≤ 65 dB(A) |
| Ingress Protection(IP) Rating | IP 65 |
| Inverter Topology | Non-Isolated |
| Over Voltage Category | OVC II(DC),OVC III(AC) |
| Cabinet size（W*H*D）[mm] | 527*894*294（Excluding connectors and brackets） |
| Weight[kg] | 80 |
| Warranty | 5 Years/10 Years
the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy |
| Type Of Cooling | Intelligent air cooling |
| Grid Regulation | IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002,
OVE-Richtlinie R25, G99, VDE-AR-N 4105 |
| Safety EMC/Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 |
